उत्पाद विवरण:
|
| बनाने का कारक: | 1U रैक सर्वर | प्रोसेसर: | 2 x Intel® Xeon® 6700P/6500P/6700E प्रोसेसर, प्रत्येक 350 W TDP तक |
|---|---|---|---|
| गुणवत्ता: | 6400 MT/s तक के DDR5 DIMM या 8000 MT/s तक के MRDIMM के लिए 32 x मेमोरी स्लॉट उपलब्ध हैं | स्थानीय भंडारण: | हॉट-स्वैपेबल ड्राइव कॉन्फ़िगरेशन: - 8/10 x 2.5" SAS/SATA/NVMe ड्राइव - 4 x 3.5" SAS/SATA ड |
| छापा: | RAID 0, 1, 10, 5, 50, 6, और 60; बिजली की विफलता से कैश डेटा सुरक्षा के लिए सुपरकैपेसिटर; RAID स्तर क | नेटवर्क: | 2 x हॉट-स्वैपेबल OCP 3.0 NIC, PCIe 5.0, NCSI और मल्टी-होस्ट को सपोर्ट करता है |
| प्रमुखता देना: | FusionServer 1288 V8 rack server,rack storage server with security,energy efficient rack server |
||
R a c k S e r v e r

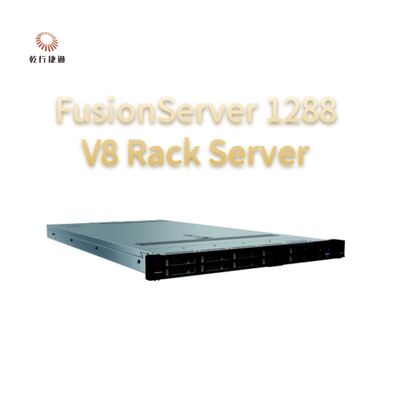

FusionServer 1288 V8
Introduction
The FusionServer 1288 V8 is a next-generation 1U2P rack server specifically designed to meet the demands of virtualization, High-Performance Computing (HPC), and Office Automation (OA).Its compact design, solid reliability, and ease of management and deployment make it an ideal choice for dealing with business requirements in industries such as Internet, government and enterprise, and finance.
Highlights
Exceptional Computing
- Compact Deployment: 1U space for 2 x Intel® Xeon® 6 processors, with up to 144 cores and a maximum TDP of 350 W per processor; 32 x memory slots available for DDR5 DIMMs at up to 6400 MT/s or MRDIMMs at up to 8000 MT/s
- Fast Storage: 10 x 2.5" SAS/SATA/NVMe drives, 4 x 3.5" SAS/SATA drives*, or 16 x E3.S SSDs*
- Powerful Scalability: up to 5 x PCIe 5.0 slots at the rear, including 2 x OCP 3.0 slots
Outstanding Security
- Enhanced Maintenance Efficiency: quick, precise PCIe link fault diagnosis, boosting efficiency by 50%
- Reduced System Downtime: industry-exclusive AI memory self-healing, with precise memory link diagnosis, cutting downtime by 66%
Optimal Energy Efficiency
- Dynamic Energy Management Technology: intelligent, non-disruptive tuning based on workloads, achieving peak energy efficiency without rebooting
- Industry-Leading Power Technology: 97% power conversion efficiency, driven by three core innovations, setting the benchmark
Technical Specifications
| Form Factor | 1U rack server |
| Processor | 2 x Intel® Xeon® 6700P/6500P/6700E processors, each with up to 350 W TDP |
| Memory | 32 x memory slots available for DDR5 DIMMs at up to 6400 MT/s or MRDIMMs at up to 8000 MT/s |
| Local Storage | Hot-swappable drive configurations: - 8/10 x 2.5" SAS/SATA/NVMe drives - 4 x 3.5" SAS/SATA drives* - 16 x E3.S SSDs* - 2 x M.2 SSDs, supporting hardware RAID |
| RAID | RAID 0, 1, 10, 5, 50, 6, and 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Network | 2 x hot-swappable OCP 3.0 NICs, supporting PCIe 5.0, NCSI, and multi-host |
| PCle Expansion | Up to 5 x PCIe slots at the rear, supporting PCIe 5.0 |
| Fan | 8 x hot-swappable counter-rotating fans in N+1 redundancy |
| PSU | 900 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy |
| Management | The iBMC chip integrates one dedicated management GE port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on ment functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.HTML5/VNC KVM, and supports out-of-band manage-It is optional to configure FusionDirector that enables intelligent, automatic, visualized, and refined management throughout the server lifecycle. |
| OS | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux,Oracle, Ubuntu, and openEuler |
| Security | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel,secure boot, and chassis intrusion detection |
| Operating Temperature | 5ºC to 45℃ (41ºF to 113℉), compliant with ASHRAE Class A1/A2/A3/A4 |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) | 43 mm x 447 mm x 798 mm (1.69 in. x 17.60 in. x 31.42 in.) |
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.
International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
